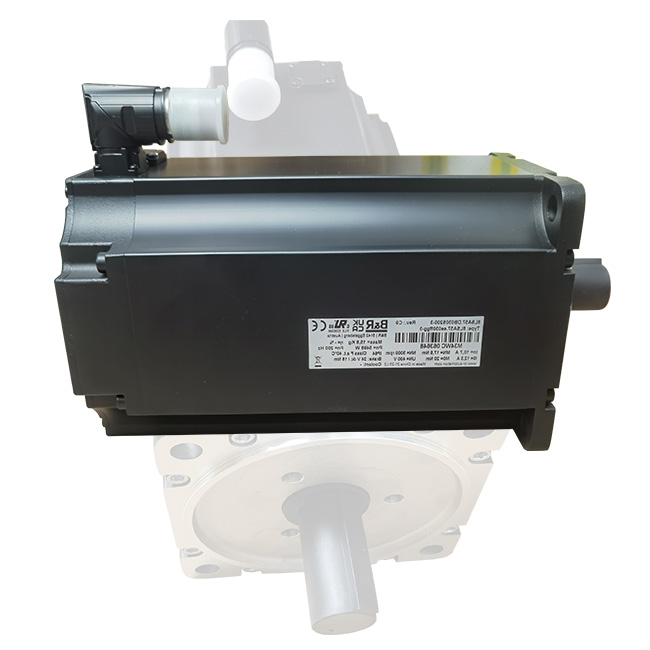

    B&R 8LSA55 Synchronous Motors 8LSA55.DB030S300-3, 8LSA55.DB030S100-3 For Servo Driver System

    Ask Lasest Price
    Brand Name : B&R
    Model Number : Synchronous motor 8LSA55.DB030S100-3
    Certification : CE UL cURus E360421 Servo and stepper motors - Component
    Price : USD 1000 -20000 piece as depend on booking price
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 5 sets 10 days
    Delivery Time : 3-70 working days
    • Product Details
    • Company Profile

    B&R 8LSA55 Synchronous Motors 8LSA55.DB030S300-3, 8LSA55.DB030S100-3 For Servo Driver System

    8LS55...-3 three-phase Synchronous motors:

    Original 8LSA55.DB030S300-3


    DESCRIPTION:


    Synchronous motor, number of pole pairs: 4 pairs, nominal speed: 3000 rpm stall torque: 12.500 Nm, motor with holding brake, shaft key single-cable solution, angled (swivel), centering diameter 130 mm j6 fit, self-cooling, type A construction, IP64 protection without oil seal, 560 VDC, holding torque of brake: 15.00 Nm DB 2.2 ind. 32-line multi-turn.

    8LSA55...-3 - Standard motors(Others)


    8LSA55.EA030D000-3
    8LSA55.EA030D200-3
    8LSA55.EB030D000-3
    8LSA55.EB030D200-3
    8LSA55.R2030D000-3
    8LSA55.R2030D200-3
    8LSA55.R2030D100-3
    8LSA55.R2030D300-3
    8LSA55.DA030S000-3
    8LSA55.DA030S200-3
    8LSA55.DB030S000-3
    8LSA55.DB030S200-3
    8LSA55.DA030S100-3
    8LSA55.DA030S300-3
    Nominal speed nN [rpm]3000
    Number of pole pairs4
    Nominal torque Mn [Nm]11.6
    Nominal power PN [W]3644
    Nominal current IN [A]7.1
    Stall torque M0 [Nm]12.5
    Stall current I0 [A]7.7
    Maximum torque Mmax [Nm]41.4
    Maximum current Imax [A]33
    Maximum speed nmax [rpm]9000
    Torque constant KT [Nm/A]1.63
    Voltage constant KE [V/1000 rpm]98.44
    Stator resistance R2ph [Ω]1.127
    Stator inductance L2ph [mH]12.5
    Electrical time constant tel [ms]11.1
    Thermal time constant ttherm [min]40
    Moment of inertia J [kgcm2]8.19
    Weight without brake m [kg]10.4
    Holding brake
    Holding torque of brake MBr [Nm]15
    Mass of brake [kg]1.47
    Moment of inertia of brake JBr [kgcm2]1.66
    Recommendations
    ACOPOS 8Vxxxx.xx...1090
    ACOPOSmulti 8BVIxxxx...0110
    ACOPOS P3 8EIxxxx...8X8X
    Cross section for B&R motor cables [mm2]1.5
    Connector size1

    FAQ:

    Q: How Can I Get The Quotation?
    A:We will submit the quotation in 24 hours if getting detailed informations during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
    1) Your engineering request such as model power, control specifcaiton and model label;
    2) If replace model, you can send us the exiting model label for faster confirm.
    3) Any special demands or requirements, such as packing, labels,delivery,etc.

    4) 24 Hours Hot Line:+8615011939995 Email:jackyqiu@dfmold168.com

    Q: Before Shipment, How To Make Sure The Product's Quality?
    A: We will supply you a video for the product detail , packing detail and so on, also will provide the high quality pictures to you forproduction approval.


    Q:What Is The MOQ?
    A: 1 Set Is Acceptable.


    Q: What Should We Do If We Receive Defective Products?
    A: If You Receive Defective Products, Please Send Us Photos Or Videos, We Will Solve The Problem As Soon As Possible. We Are Responsible For All B&R Synchronous motor And Signaling Units Quality.


    Q: How About The Technical Support ?
    A: A Professional Engineer Team Will Be Here For You With 10 Years Experience.


    Q: Which Payment Method And Express Can You Accept ?
    A: T/T ; PayPal ; Trade Assurance ; Alipay If You Have New Solution. Welcome To Call Us.


    Q: When Will My Parts Be Send Out ?
    A: Order Time Will Be 3 Workdays, If No In Stock, Lead Time Will Be 2-4 Monthes welcome to send us contact.
