    B&R Power Panel PP65 Series 4pp065-0571-X74f For TFT Display With Touch Screen 4pp065 0571 x74f

    Ask Lasest Price
    Brand Name : B&R
    Model Number : TFT display with touch screen 4pp065 0571 X74f
    Certification : CE UL cURus E360421 Servo and stepper motors - Component
    Price : USD 500 -20000 piece as depend on booking price
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 5 sets 10 days
    Delivery Time : 3-70 working days
    • Product Details
    • Company Profile

    B&R Power Panel PP65 Series 4pp065-0571-X74f For TFT Display With Touch Screen 4pp065 0571 x74f

    B&R stepper Motor Driver:

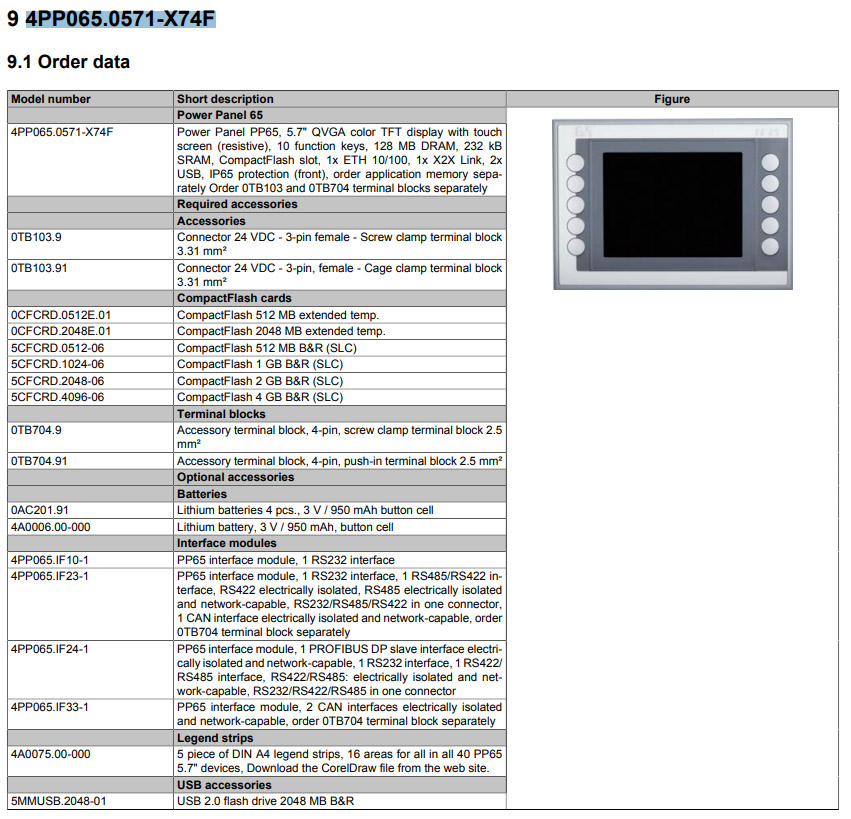

    Original 4PP065.0571-X74F


    DESCRIPTION:


    • Power Panel PP65, 5.7" QVGA color TFT display with touch screen (resistive), 10 function keys, 128 MB DRAM, 232 kB SRAM, CompactFlash slot, 1x ETH 10/100, 1x X2X Link, 2x USB, IP65 protection (front), order application memory separately! Order terminal blocks 0TB103 and 0TB704 separately!
    Display
    TypeTFT color
    Diagonal5.7" (144 mm)
    Colors262,144
    ResolutionQVGA, 320 x 240 pixels
    Contrast350:1
    Viewing angles
    HorizontalDirection R / Direction L = 60°
    VerticalDirection U = 65° / Direction D = 50°
    Backlight
    Brightness500 cd/m²
    Half-brightness time50,000 h
    Touch screen
    TechnologyAnalog, resistive
    ControllerB&R, 12-bit
    Transmittance70% ±10%
    Screen rotationYes (see section "Screen rotation" in chapter "Installation")

    Controller
    Bootloader, operating system
    PP65 supported starting with versionAutomation Runtime, C2.96
    Processor
    TypeGeode LX800, 32-bit x86
    Clock frequency500 MHz
    L1 cache128 kB (64 kB I-cache / 64 kB D-cache)
    L2 cache128 kB
    Expanded command setMMX technology, 3D Now
    Floating point unit (FPU)Yes
    Flash4 MB (for firmware)
    CoolingPassive via heat sink
    Mode/Node switches2, 16 positions each
    Remanent variables32 kB
    WatchdogMTCX
    Real-time clock
    AccuracyAt 25°C: Typ. 30 ppm (2.5 seconds) per day
    Battery-backedYes
    Power failure logic
    ControllerMTCX
    Buffer time10 ms
    Graphics
    ControllerGeode LX800
    Memory8 MB shared memory (reserved by RAM)
    Standard memory
    RAM128 MB DDR SDRAM
    User RAM232 kB SRAM
    PP65 Compact IF slot1

    B&R Power Panel(Others)

    4PP065.0351-P74
    4PP065.0351-X74
    4PP065.0571-P74
    4PP065.0571-P74F
    4PP065.0571-X74
    4PP065.0571-X74F
    4PP065.IF10-1
    4PP065.IF23-1
    4PP065.IF24-1
    4PP065.IF33-1
