    B&R Saftety Bus Module X20BM23 X20BM26 for Safety technology Servo Power link Driver System

    Ask Lasest Price
    Brand Name : B&R
    Model Number : powerlink x20BM132
    Certification : CE UL cURus E360421 Servo and stepper motors - Component
    Price : USD 80 -500 piece as depend on booking price
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 5 sets 10 days
    Delivery Time : 3-70 working days
    • Product Details
    • Company Profile

    B&R Saftety Bus Module X20BM23 X20BM26 for Safety technology Servo Power link Driver System

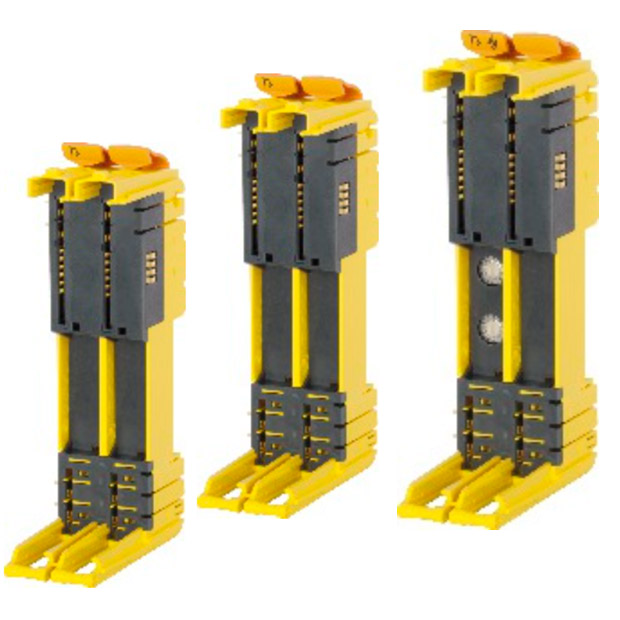

    B&R Bus Module X20BM23 & X20BM26:


    DESCRIPTION:

    • Bus module for SafeIO power supply modules
    • The internal I/O power supply is interrupted to the left.
    • For creating potential groups
    • Manual node number assignment
    • Independent from the electronics module
    • Manual and automatic addressing can be combined as desired.

    The bus module is the base for all SafeIO power supply modules. The internal I/O power supply is interrupted to the left. In addition, a unique address is defined with this bus module using a node number switch.

    Short description
    Bus modulePower supply bus module, for X20 SafeIO power supply modules, with node number switch, internal I/O power supply interrupted to the left
    General information
    Power consumption
    Bus0.13 W
    Internal I/O-
    Additional power dissipation caused by actuators (resistive) [W]-
    Certifications
    CEYes
    UKCAYes
    ATEXZone 2, II 3G Ex nA nC IIA T5 Gc
    IP20, Ta (see X20 user's manual)
    FTZÚ 09 ATEX 0083X
    ULcULus E115267
    Industrial control equipment
    HazLoccCSAus 244665
    Process control equipment
    for hazardous locations
    Class I, Division 2, Groups ABCD, T5
    DNVIn preparation
    EACYes
    KCYes
    I/O power supply
    Nominal voltage24 VDC
    Permissible contact load10 A
    Operating conditions
    Mounting orientation
    HorizontalYes
    VerticalYes
    Installation elevation above sea level0 to 2000 m, no limitation
    Degree of protection per EN 60529IP20
    Ambient conditions
    Temperature
    Operation
    Horizontal mounting orientation-25 to 60°C
    Vertical mounting orientation-25 to 50°C
    Derating-
    Storage-40 to 85°C
    Transport-40 to 85°C
    Relative humidity
    Operation5 to 95%, non-condensing
    Storage5 to 95%, non-condensing
    Transport5 to 95%, non-condensing
    Mechanical properties
    Pitch25+0.2mm

    B&R Bus controlers' List:


    X20BM13
    X20BM16
    X20BM23
    X20BM26
    X20BM33
    X20BM36
    X20BC0063
    X20BC0083
    X20BC00E3
    X20BC00G3
    X20BC0087
