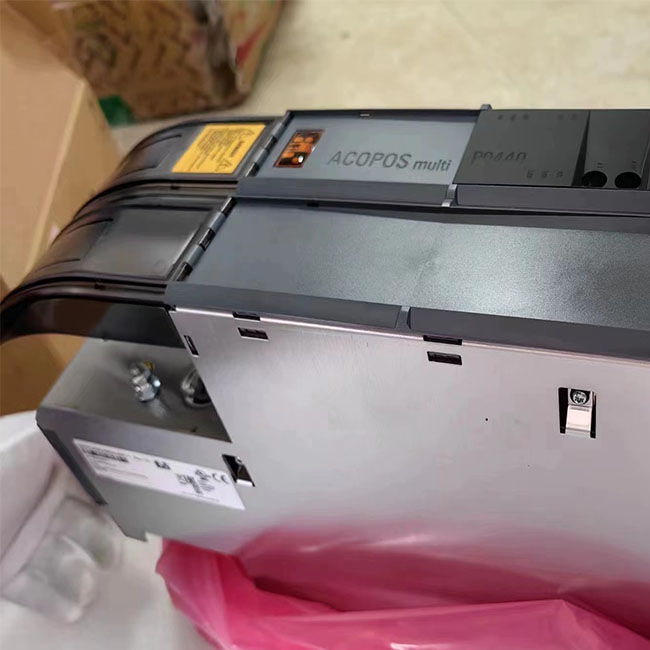

    B&RACOPOS Multi Inverter 8BVI0220HWD0.000-1 For Power Link I/O System And Servo Driver System

    Ask Lasest Price
    Brand Name : b&r
    Model Number : 8BVI0220HWD0.000-1
    Certification : CE UL cURus E360421 Servo and stepper motors - Component
    Price : USD 1000 -20000 piece as depend on booking price
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 5 sets 10 days
    Delivery Time : 3-70 working days
    • Product Details
    • Company Profile

    B&RACOPOS Multi Inverter 8BVI0220HWD0.000-1 For Power Link I/O System And Servo Driver System

    ACOPOSmulti inverter: 8BVI0220HWD0.000-1


    Description:

    • Integrated uncontrolled standstill and safe stop
    • Integrated connection for motor holding brake and temperature sensor
    • 2 slots for ACOPOSmulti plug-in modules
    • Two fully independent power inverters in one inverter module contained in 2-axis modules

    ACOPOSmulti inverter module, 22 A, AS, wall mounting, 2 axes


    Technical Data:


    24 VDC power supply
    Input voltage25 VDC ±1.6%
    Input capacitance23.5 µF
    Max. power consumption21 W + PSLOT1 + PSLOT2 + P24 V Out + PHoldingBrake(s)
    VariantACOPOSmulti backplane
    24 VDC output
    Quantity2
    Output voltage
    DC bus voltage (UDC): 260 to 315 VDC25 VDC * (UDC/315)
    DC bus voltage (UDC): 315 to 800 VDC24 VDC ±6%
    Fuse protection250 mA (slow-blow) electronic, automatic reset
    Motor connection
    Quantity2
    Continuous power per motor connection16 kW
    Continuous current per motor connection22 Aeff
    Reduction of continuous current depending on switching frequency
    Switching frequency 5 kHz0.33 A/K (starting at 40°C)
    Switching frequency 10 kHz0.17 A/K (starting at -25°C)
    Reduction of continuous current depending on installation elevation
    Starting at 500 m above sea level2.2 Aeff per 1000 m
    Peak current per motor connection55 Aeff
    Nominal switching frequency5 kHz
    Possible switching frequencies5 / 10 kHz
    Insulation stress of the connected motor per IEC TS 60034-25:2004Limit value curve A
    Protective measures
    Overload protectionYes
    Short-circuit and ground fault protectionYes
    Max. output frequency598 Hz
    Variant
    U, V, W, PEConnector
    Shield connectionYes
    Terminal connection cross section
    Flexible and fine-stranded wires
    With wire end sleeves0.25 to 6 mm²
    Approbation data
    UL/C-UL-US30 to 10 AWG
    CSA28 to 10 AWG
    Terminal cable cross section dimension of shield connection12 to 22 mm
    Max. motor line length depending on switching frequency
    Switching frequency 5 kHz25 m
    Switching frequency 10 kHz25 m


    Contact: Mrss. Lutos Deng
    Email: lotusdeng@dfmold168.com
    Whatsapp: +8619924983668
    100% Original Automation Goods!

    FAQ:

    Q: How Can I Get The Quotation?
    A:We will submit the quotation in 24 hours if getting detailed informations during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
    1) Your engineering request such as model power, control specifcaiton and model label;
    2) If replace model, you can send us the exiting model label for faster confirm.
    3) Any special demands or requirements, such as packing, labels,delivery,etc.

    4) 24 Hours Hot Line:+8615011939995

    Q: How Long Is The Lead-time?
    A: Depending on your specific project,it usually takes 4 to 8 days to ship if we have in store. If we don't have in store, lead
    time is about 30-80 days.


    Q: Before Shipment, How To Make Sure The Product's Quality?
    A: We will supply you a video for the product detail , packing detail and so on, also will provide the high quality pictures to you forproduction approval.

    Q: How To Pack The Goods?
    A: 100% Original packing, we will also pack into standard export cartons or as per customer’s request to pack to prepare for shipping.


    Q: What Is Your Payment Terms?
    A: Production Payment: 50% deposit in advance, 50% before sending out the final goods if do not have store. 100% deposit in advance for in stock model.

    Q:What Is The MOQ?
    A: OEM Is Welcome, Small Order As 1 Set Is Acceptable.

    Q: What Should We Do If We Receive Defective Products?
    A: If You Receive Defective Products, Please Send Us Photos Or Videos, We Will Solve The Problem As Soon As Possible. We Are Responsible For All Harmony XB4 Metal Contact Control And Signaling Units Quality.

    Q: How About The Technical Support ?
    A: A Professional Engineer Team Will Be Here For You With 10 Years Experience.

    Q: Which Payment Method And Express Can You Accept ?
    A: T/T ; PayPal ; Trade Assurance ; Alipay .

    Q: When Will My Parts Be Send Out ?
    A: Order Time Will Be 3 Workdays, if no in Stock, Lead Time will be 2-4 Monthes.
