    B&R Saftety Bus Module X20BB52 X20BB53 for Safety technology Servo Power link Driver System

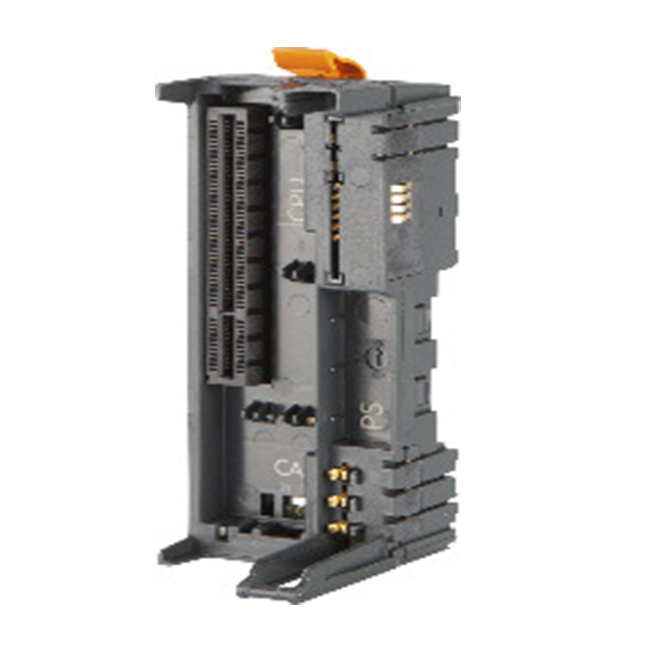

    B&R Bus Module X20BB52 & X20BB53:


    DESCRIPTION:

    • Base for all X20 Compact-S CPUs
    • RS485 connection
    • Integrated terminating resistor
    • The bus base is the base for all X20 Compact-S CPUs.

      The left and right end cover plates are included in delivery.

    I/O power supply
    Nominal voltage24 VDC
    Permissible contact load10 A
    Electrical properties
    Electrical isolationBus not isolated from RS485
    Operating conditions
    Mounting orientation
    HorizontalYes
    VerticalYes
    Installation elevation above sea level
    0 to 2000 mNo limitation
    >2000 mReduction of ambient temperature by 0.5°C per 100 m
    Degree of protection per EN 60529IP20
    Ambient conditions
    Temperature
    Operation
    Horizontal mounting orientation-25 to 60°C
    Vertical mounting orientation-25 to 50°C
    Derating-
    Storage-40 to 85°C
    Transport-40 to 85°C
    Relative humidity
    Operation5 to 95%, non-condensing
    Storage5 to 95%, non-condensing
    Transport5 to 95%, non-condensing


    B&R Bus controlers' List:


    X20BB53
    X20BB52
    X20BB57
    X20BB62
    X20BB63
    X20BB67
    X20BB72
    X20BB77
    X20BB80
    X20BB81
    X20BB82
