    B&R Analog inputs x20ai1744-10 & X20AI222 for Safety technology Servo Power link Driver System

    Ask Lasest Price
    Brand Name : B&R
    Model Number : b&r x20ai1744-10
    Certification : CE UL cURus E360421 Servo and stepper motors - Component
    Price : USD 80 -500 piece as depend on booking price
    Payment Terms : D/A, D/P, T/T, Western Union
    Supply Ability : 5 sets 10 days
    Delivery Time : 3-70 working days
    • Product Details
    • Company Profile

    B&R Analog inputs x20ai1744-10 & X20AI222 for Safety technology Servo Power link Driver System

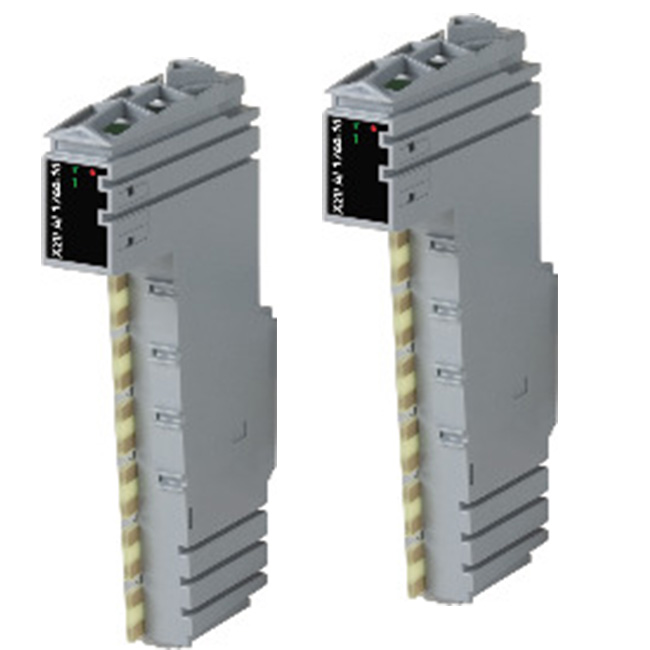

    B&R Bus Module X20AI1744-10:


    DESCRIPTION:

    • 1 full-bridge strain gauge input
    • Bridge voltage 10 VDC
    • Data output rate configurable from 0.1 Hz to 7.5 kHz
    • Special operating modes (synchronous mode and multisampling)
    • Configurable filter level

    This module works with both 4-wire and 6-wire strain gauge load cells. The concept applied by the module requires compensation in the measurement system. This compensation eliminates the absolute uncertainty in the measurement circuit, such as component tolerances, effective bridge voltage or zero point offset. The measurement precision refers to the absolute (compensated) value, which will only change as a result of changes in the operating temperature.


    Full-bridge strain gauge
    Strain gauge factor2 to 256 mV/V, configurable using software
    Connection4- or 6-wire connections
    Input typeDifferential, used to evaluate a full-bridge strain gauge
    Digital converter resolution24-bit
    Conversion timeDepends on the configured data output rate
    Data output rate0.1 - 7500 samples per second, configurable using software (fDATA)
    Input filter
    Cutoff frequency5 kHz
    Order3
    Slope60 dB
    ADC filter characteristicsSigma-delta, see section "Filter characteristics of the sigma-delta A/D converter"
    Operating range / Measurement sensor162 to 5000 Ω
    Influence of cable lengthSee section "Calculation example".
    Input protectionRC protection
    Common-mode range0 to 3 VDC
    Permissible input voltage range (with regard to the electric potential strain gauge GND) on inputs "Input +" and "Input -"
    Insulation voltage between input and bus500 Veff
    Conversion procedureSigma-delta
    Output of digital value
    Broken bridge supply lineValue approaching 0
    Broken sensor lineValue approaching ±end value (status bit "Line monitoring" is set in register "Module status")
    Valid range of values0xFF800001 to 0x007FFFFF (-8,388,607 to 8,388,607)

    B&R Other Analog Inputs List:


    X20AI1744
    X20AI1744-3
    X20AI2222
    X20AI2237
    X20AI2322
    X20AI2437
    X20AI2438
    X20AI2622
    X20AI2632
    X20AI2636
    X20AI4222
    X20AI4322
    X20AI4622
    X20AI4632
    X20AI4632-1
    X20AI4636
    X20AI8221
    X20AI8321
    X20AIA744
    X20AIB744


    Contact: Mrss. Lutos Deng

    Email: lotusdeng@dfmold168.com
    Whatsapp: +8619924983668
    100% Original Automation Goods!

    FAQ:

    Q: How Can I Get The Quotation?
    A:We will submit the quotation in 24 hours if getting detailed informations during working days.In order to quote for you earlier, please provide us the following information together with your inquiry.
    1) Your engineering request such as model power, control specifcaiton and model label;
    2) If replace model, you can send us the exiting model label for faster confirm.
    3) Any special demands or requirements, such as packing, labels,delivery,etc.

    4) 24 Hours Hot Line:+8615011939995

    Q: Before Shipment, How To Make Sure The Product's Quality?
    A: We will supply you a video for the product detail , packing detail and so on, also will provide the high quality pictures to you forproduction approval.


    Q: How About The Technical Support ?
    A: A Professional Engineer Team Will Be Here For You With 10 Years Experience.


    Q: Which Payment Method And Express Can You Accept ?
    A: T/T ; PayPal ; Trade Assurance ; Alipay if you have new solution. Welcome to call us.


    Q: When Will My Parts Be Send Out ?
    A: Order Time Will Be 3 Workdays, if no in Stock, Lead Time will be 1-4 Monthes.
