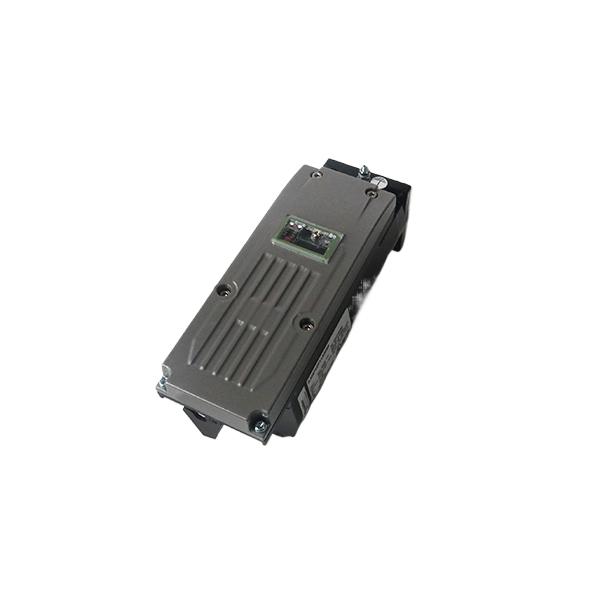

Comprehensive Technical Report: Schneider Electric Lexium 62 ILM Servo Motor (Model ILM0701P32A0000)

1. Product Overview

The Lexium 62 ILM0701P32A0000 represents Schneider Electric’s advanced integration of servo drive, motor, and controller within a single IP65-rated unit. Designed for high-precision motion control in space-constrained or harsh industrial environments, it delivers 1.1 Nm continuous torque and operates at speeds up to 6,000 rpm. Unlike conventional servo systems, this model features a keyed shaft for secure mechanical coupling, a multiturn absolute encoder for position retention without homing, and a brake-free design with IP65 protection126. As part of the MachineStruxure™ platform, it targets OEM applications requiring reduced wiring, energy efficiency, and decentralized control architectures.

2. Technical Specifications

Key parameters distinguishing the ILM0701P32A0000:

3. Design Innovations and Key Features

• Keyed Shaft Mechanical Advantage:
  The keyed shaft ensures reliable torque transmission in high-vibration environments (e.g., packaging lines), preventing slippage and reducing maintenance downtime1. Combined with IP65-rated housing, it resists dust, water jets, and chemical exposure, making it ideal for food processing or pharmaceutical applications.

• Integrated Drive-Motor Architecture:
  Consolidates drive, controller, and SERCOS III communication into the motor housing, slashing control cabinet space by 90% and cabling by 70%26. Hybrid cables enable flexible topologies (line, tree, or hybrid), simplifying multi-axis setups.

• Energy and Thermal Efficiency:
  Natural convection cooling eliminates external fans, reducing system energy consumption by 30%69. The epoxy-based coating and FDA-compliant lubricant (Klübersynth UH1 64-62) enhance longevity in corrosive environments1.

• Safety and Functional Integration:
  Native support for Safe Torque Off (STO) and Safe Stop 1 (SS1) meets SIL3/PLd standards without add-on modules. Optional DIO I/O modules enable direct connection of sensors/actuators via the servo bus, enabling localized control loops68.

4. Application Scenarios

• High-Precision Manufacturing:
  The keyed shaft and multiturn encoder enable accurate positioning in CNC machining and semiconductor handling, where backlash or position loss is unacceptable. Speed ripple (±0.01%) ensures consistent quality in winding applications19.

• Harsh Environment Operations:
  IP65 protection allows deployment in washdown areas (e.g., beverage bottling lines) or dusty settings (e.g., woodworking). The brake-free design reduces failure points in humid conditions16.

• Multi-Axis Modular Systems:
  Compatible with Lexium 62 Connection Modules (e.g., ILM62CMD20A0000), supporting daisy-chaining of up to 45 units via hybrid DC/communication cables. Centralized power from LXM62 drives simplifies scalability28.

5. Installation and System Integration

• Electrical Requirements:

  • Control Voltage: 18.5–31 Vdc (±10% tolerance), drawing ≤240 mA (no brake)1.

  • EMC Compliance: No external filters needed with Schneider-certified cables; meets IEC/EN 61800-3 C3 standards1.

• Mechanical Mounting:
  Keyed shaft requires ISO 14,844-compliant couplings for misalignment compensation. Mounting flange (70 mm) suits compact machinery layouts.

• Topology Flexibility:
  Hybrid cables integrate power and SERCOS III communication, enabling star, linear, or mixed configurations. This reduces wiring complexity versus traditional star topologies68.

6. Performance and Reliability

• Overload Protection:
  Real-time thermal monitoring uses ContStallCurrent (stall state) and NomCurrent (rated speed). Alarms trigger at 80% load (warning: Message 8125) and force shutdown at 100% (Message 8100)1.

• Dynamic Response:
  16-bit analog input resolution and 2μs motion task synchronization achieve ±0.01% speed stability, critical for synchronous operations in printing or labeling19.

• Lifecycle Management:
  Field repair is restricted; servicing requires Schneider-certified technicians to maintain warranty. Epoxy coating and IP65 sealing extend mean time between failures (MTBF) in abrasive environments.

7. Market Differentiation

Compared to standard ILM models (e.g., ILM0701P02A0000), the ILM0701P32A0000 offers unique advantages:

• Mechanical Robustness:
  Keyed shaft replaces friction-dependent couplings, enhancing torque reliability in high-inertia applications.

• Environmental Resilience:
  IP65 rating surpasses typical IP20/IP54 drives, enabling decentralized installation outside control cabinets68.

• Cost Efficiency:
  50% lower installation costs and 30% energy savings versus traditional servo systems, with additional savings from reduced cooling infrastructure29.

Comparative Table: ILM0701P32A0000 vs. Standard Servo Motors

Conclusion

The Lexium 62 ILM0701P32A0000 sets a new benchmark for integrated servo motors by combining mechanical reliability (keyed shaft), environmental resilience (IP65), and advanced multiturn feedback. Its decentralized design reduces installation complexity while enabling flexible topologies—ideal for modular machines in food processing, packaging, and electronics manufacturing. By eliminating external drives, cutting energy use by 30%, and ensuring SIL3/PLd safety compliance, it delivers a future-proof solution for Industry 4.0 applications where space, efficiency, and reliability are non-negotiable.
