Comprehensive Technical Report: Schneider Electric Lexium 62 ILM Integrated Servo Motor (Model ILM1001P02F0000)

1. Product Overview

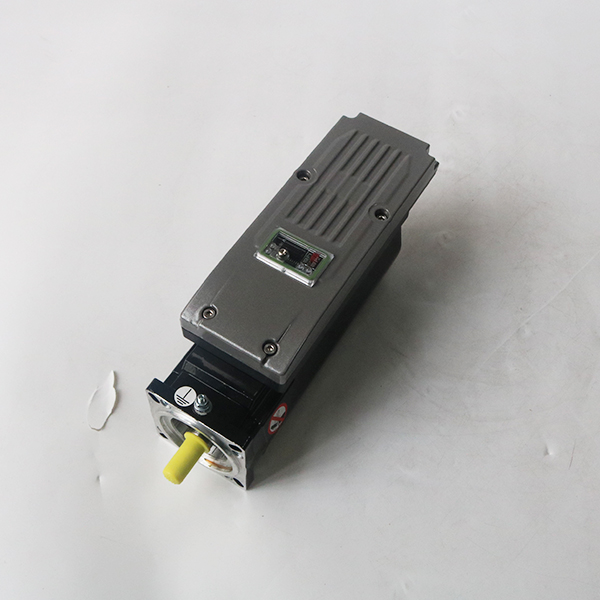

The Lexium 62 ILM1001P02F0000 represents Schneider Electric's pinnacle of integrated motion control technology, combining a high-torque servo motor, drive, controller, 24-bit multiturn absolute encoder, and electromechanical brake within a single IP65-rated unit. Designed for safety-critical and precision-demanding applications, it delivers 2.5 Nm continuous torque at speeds up to 3,000 rpm. This model uniquely merges positional integrity (16,384 revolutions without homing) with vertical-axis safety (2.7 Nm holding torque), making it ideal for automated warehousing, CNC machinery, and medical equipment. As part of Schneider’s MachineStruxure™ ecosystem, it reduces installation costs by >55%, control cabinet space by 90%, and energy consumption by 35% compared to traditional servo systems .

2. Technical Specifications

Key parameters highlighting the brake-encoder synergy and thermal resilience:

3. Design Innovations and Key Features

• Dual Safety-Precision Architecture:
  The 24-bit multiturn encoder retains absolute position across 16,384 revolutions without batteries, eliminating post-power-loss homing in automated storage systems. Simultaneously, the spring-applied brake delivers 2.7 Nm holding torque within 50 ms, preventing load drops in vertical axes (e.g., elevators).

• High-Torque Thermal Optimization:
  Low thermal resistance (0.8 K/W) enables sustained 2.5 Nm torque at 3,000 rpm using natural convection—35% more efficient than forced-air systems. FDA-compliant lubricant (Klübersynth UH1 64-62) and epoxy coating resist corrosion in harsh environments.

• Decentralized Topology & I/O Flexibility:
  Hybrid cables integrate power and SERCOS III communication, enabling line/tree/hybrid topologies. Each Connection Module (e.g., ILM62CMD20A0000) supports up to 45 units, reducing cabling by 70%. Optional DIO modules link up to 16 sensors/actuators via the servo bus for localized control.

• Native Safety Integration:
  Embedded Safe Brake Control (SBC) works with STO/SS1 to achieve SIL3/PLd compliance, eliminating external safety relays. Real-time thermal monitoring via PTC thermistors derates torque at 105°C (Alarm 8125) and triggers shutdown at 130°C (Fault 8100).

4. Application Scenarios

• Automated Storage & Retrieval (AS/RS):
  Multiturn feedback tracks pallet positions across multi-floor warehouses during outages, while the brake secures 50 kg loads on vertical lifts. IP54 motor protection withstands industrial dust.

• Medical Vertical Platforms:
  Brake ensures fail-safe locking of MRI tables or surgical arms during power failures. Encoder resolution (±0.0002°) guarantees positional accuracy for sensitive procedures.

• Heavy-Duty CNC Tooling:
  3,000 rpm speed and 2.5 Nm torque enable precise spindle control. Natural convection cooling eliminates coolant contamination risks in machining centers.

5. Installation and Safety Integration

• Electrical Requirements:

  • Brake Control: 20.5–30 Vdc (±10%) with 740 mA inrush current; requires EN 60950-certified 24 Vdc supplies.

  • EMC Compliance: No external filters needed with Schneider hybrid cables; meets IEC/EN 61800-3 C3 standards.

• Mechanical Compliance:

  • 100 mm flange (ISO 9409-1 mounts) and 14 mm keyed shaft for anti-slip torque transmission.

  • Brake service life: 1,000,000 cycles (Schneider-authorized maintenance only).

• Safety Protocols:

  • Install in IP54+ cabinets with EN 50178-compliant creepage/clearance distances.

  • Validate Inverter Enable signals via SIL3-certified PLCs (e.g., Modicon M580).

6. Performance and Reliability

• Positional Integrity:
  Multiturn encoder maintains accuracy across 50+ power cycles—superior to battery-backed systems. Speed ripple (±0.01%) ensures stable motion in synchronous tasks.

• Thermal Management:
  Alarm 8125 (105°C pre-warning) and Fault 8100 (130°C shutdown) protect windings. ContStallCurrent and NomCurrent parameters enable adaptive overload protection.

• Lifecycle Efficiency:
  45,000 hours MTBF. Brake wear monitored via EcoStruxure™ platform, with service restricted to Schneider-certified technicians.

7. Market Differentiation and Advantages

Comparative Table: ILM1001P02F0000 vs. Competing High-Torque Servos

• Total Cost of Ownership:
  Eliminates external drives, cooling infrastructure, and homing procedures, reducing lifecycle costs by >40%.

• Sustainability:
  Hybrid cables cut copper usage by 70%, while natural convection lowers carbon footprint by 35%.

• Scalability:
  Integrates with PacDrive 3 ecosystems for 1–99 axis control via SERCOS III.

Conclusion

The Lexium 62 ILM1001P02F0000 redefines safety-critical motion control by unifying uninterrupted positioning (24-bit multiturn encoder), vertical-axis security (2.7 Nm brake), and high-torque performance (2.5 Nm) in an IP65-hardened, decentralized package. Its dual safety-precision architecture eliminates homing procedures while securing loads during power loss—critical for AS/RS, medical, and CNC applications. With 55% lower installation costs, 35% energy savings, and native SIL3/PLd compliance, it delivers unparalleled value for Industry 4.0 applications where operational continuity, safety, and efficiency are non-negotiable. For OEMs developing machinery with heavy-load and safety-critical demands, this motor sets a benchmark in integrated servo technology.
