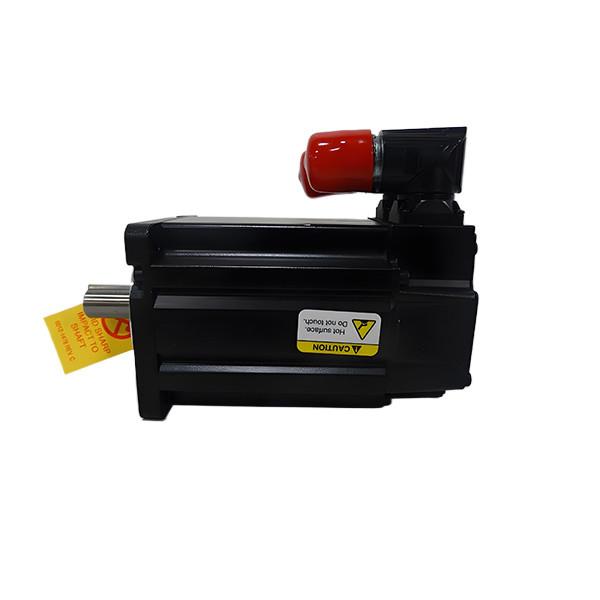

Rockwell low inertia AC servo motor MPL-B320P-SJ72AA
Product Series: MPL Low Inertia Series
Motor characteristics
Installation method: flange installation (Metric standard)
Brake: None
feedback system
Feedback type: Absolute single loop type
Feedback resolution: Sin/Cos, 1024 cycles per revolution
Feedback Protocol: Hiperface Protocol
performance parameter
Rated speed: 5000rpm
Maximum speed: 5000rpm (same as rated speed)
Length of magnet stack: 50.8mm (20 units, may refer to some
measurement unit of magnet stack)
Frame size: Frame 3/Frame 100=100mm (may refer to the size of the
motor casing)
Voltage level: 400V AC
Continuous output torque: 3.05Nm
Peak output torque: 7.91Nm
Compatible Drive Series
Compatible with multiple Rockwell Kinetix series drivers, including
Kinetix 5500, 6200/6500, 6000, 300, 350, 2000, and 7000, as well as
Ultra 3000.
Power and inertia
Rated power (continuous): 1.5kW
Rotor inertia: 7.8E-05 kg m ²
Operating temperature
Maximum operating temperature: 40 ° C
Minimum operating temperature: 0 ° C
Maximum storage temperature: 70 ° C
Minimum storage temperature:- 30°C
Humidity and weight
Minimum relative humidity: 5% RH
Maximum relative humidity: 95% RH
Weight: 3.7kg
Protection level
IP rating: IP50 (no shaft seal); Optional IP66 (with shaft seal and
when using environmentally sealed cable connectors)
Environmental adaptability
Maximum impact acceleration: 20g
Maximum impact duration: 6ms
Maximum vibration acceleration: 2.5m/s ²
Maximum operating vibration frequency: 2000Hz
summary
Rockwell MPL-B320P-SJ72AA is a low inertia AC servo motor with
high-precision feedback system, high speed, and peak torque,
suitable for motion control applications that require fast response
and high precision. It is compatible with multiple Rockwell drives,
making it easy to integrate and debug. In addition, the motor also
has certain environmental adaptability and can adapt to temperature
and humidity conditions within a certain range. Under specific
configurations, its protection level can reach IP66, suitable for
even harsher environmental conditions.
